Battery Tester
英文版 电池测试仪 Cell Tester

Battery Tester (0-10V)   Model:W602Y
Battery Tester (0-20V)   Model:W404Y

                                                English Version: Both of the operation and display are in English.       (                               （The fastest speed is only 0.5 seconds to complete testing a battery)  .
      Ⅰ.  Fast speed
      Ⅱ.  Large measuring range；
      Ⅲ.  High precision；
      Ⅳ.  High reliability；
      Ⅴ.  Friendly man-machine interaction interface .
1．Function Introduction:
The testing instrument can be used in testing:
①  Lithium-ion battery (group);
②  Polymer battery (group);
③  Ni-MH battery (group);
④  Ni-Cd battery (group);  etc.
Such as:  ⑴.Mobile phone batteries
                 ⑵.Digital equipment batteries
                ⑶.Notebook batteries    and other types of batteries …
2．Testing functions: (Can test the parameters)
2.1  Cell Voltage  (open-circuit voltage)             ……  V1
2.2   Load Voltage                                               ……  V2
2.3  Charging function                                          ……  CHA
2.4  Discharging  (over discharging current)      ……  OVC
2.5  Internal Impedance                                       ……  IMP
2.6  Short-circuit protection                                  ……  SPT
2.7  Short-circuit protection Auto-recovery        ……  SPR
2.8  Thermistor (R1/R2)                                     ……  R1/R2
2.9  Capacity Test
2.10  Read code ( DS2502 ROD CODE )… (This function is for option)

3．The Measurement Range and Minimum Resolution:

Function                                         Range                      Resolution

Cell Voltage  (V1)                           0—5 V                      0.001V
                                                         0—10/20 V                 0.01V
Charging   (CHA)                          50—2000 mA              1mA
Discharging                                   50—2000 mA             1mA
Over discharging current (OVC)   0—20/25 A                0.01A
Internal Impedance   (IMP)             0—999 mΩ               1mΩ
Short-circuit protection  (SPT)         0—99.9 mS              0.1mS
Thermistor (R1/R2)                          0—999.9 kΩ             0.1kΩ
Capacity                                            0—9999 mAH          1mAH

Size: (about)  290mm(L)*270mm(W)*100mm(H)     Weight: 3kg

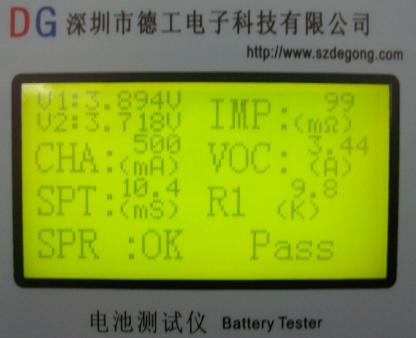

     4.1  Fast Testing
4.1.1  The cell voltage function is default instrument settings, can’t be choose,
4.1.2  Other test functions can choose. Once it be chosen , the tester will test it; otherwise it won’t. So users can choose the test items as they need.
4.1.3  Users can adjust all the functional parameters by pressing the numeric pad. (set the upper limit and lower limit as they need).
4.1.4  If the test result within our presetting range,it will indicate”Pass”.
4.1.5  If the test result beyond our presetting range,it will indicate”NG",
In the display of “NG”,the character’s background color will be deepened., meanwhile will make a beep.

    4.2  Capacity Testing
4.2.1  The charging current can set;
4.2.2  The discharging current can set;
4.2.3  The charge cut-off voltage can set;
4.2.4  The discharge cut-off voltage can set;
4.2.5  After the capacity test completed, cell voltage,test time and the capacity will displayed on this screen.
